Hawker Super Hunter
The intention of this project was to bring a hand-drawn sketch from the 1950s to life, in the form of 3D printed models and photorealistic images.
Performance
- Maximum Speed: Mach 1.8
- Service Ceiling: 55,000ft
- Combat Radius: 700NM
Propulsion
- Engine: 1x Rolls-Royce Avon Mk.301R
- Dry Thrust: 56kN
- Wet Thrust: 76kN
Dimensions & Weight
- Length: 14.5m
- Wingspan: 7.4m
- Height: 3.1m
- Empty Weight: 7,000kg
- MTOW: 11,500kg
3D Conversion

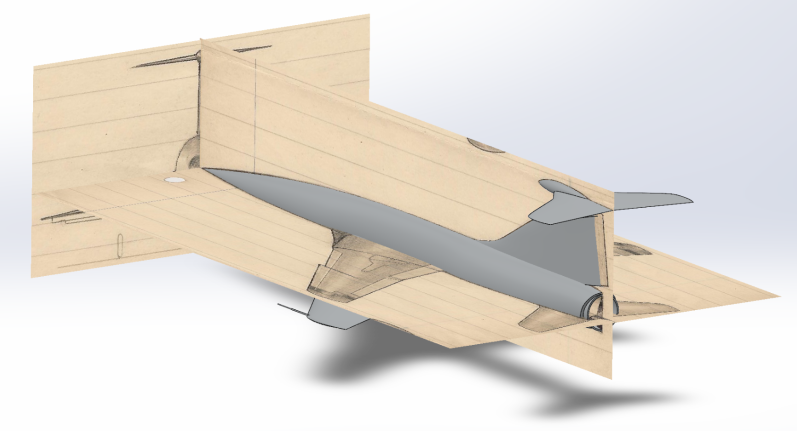

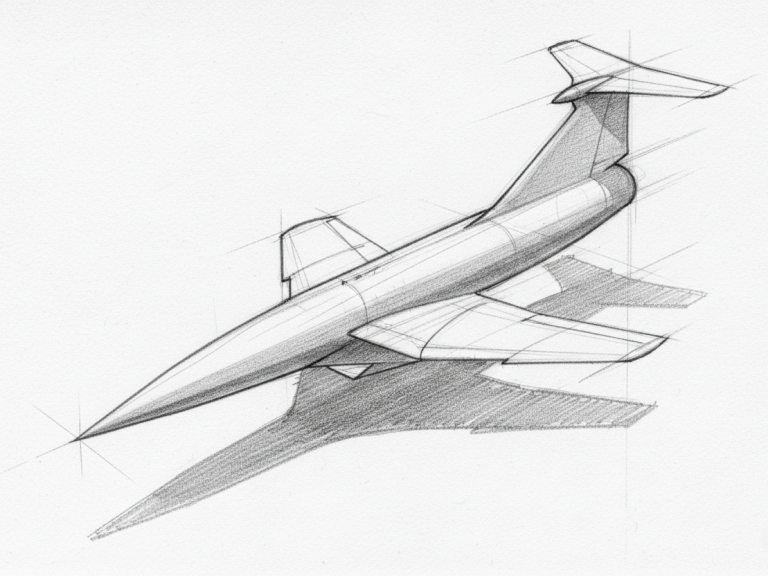

The initial phase was to create a 3D model of the design, using the original sketches.
Additionally, a display stand was requested, so the model could be displayed. These items were scaled down and 3D printed. Finally, two art pieces were requested, in the form of photorealistic images.

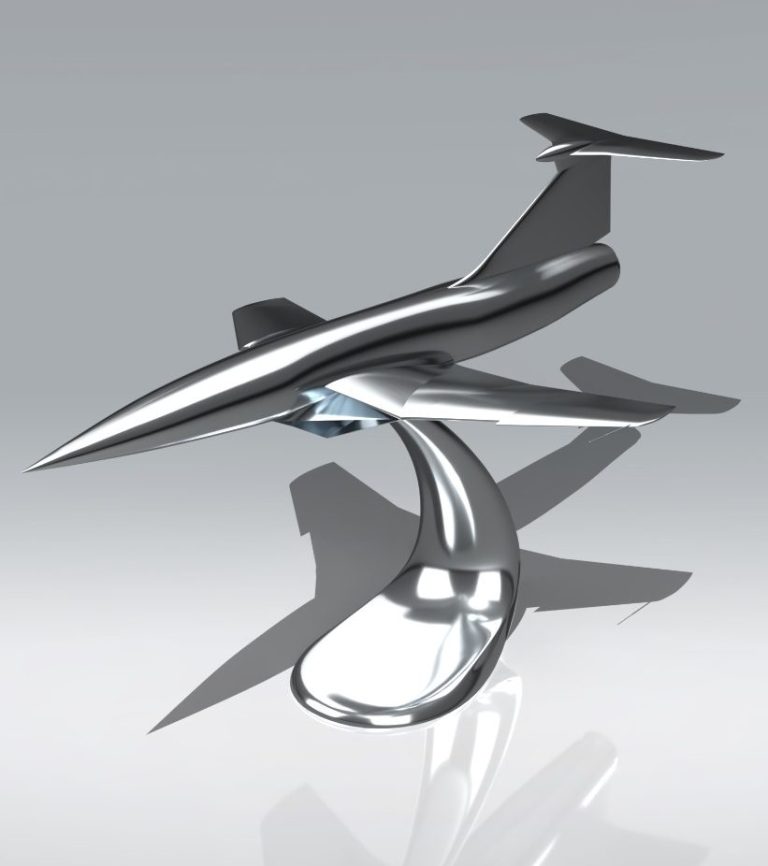

3D Model Preview

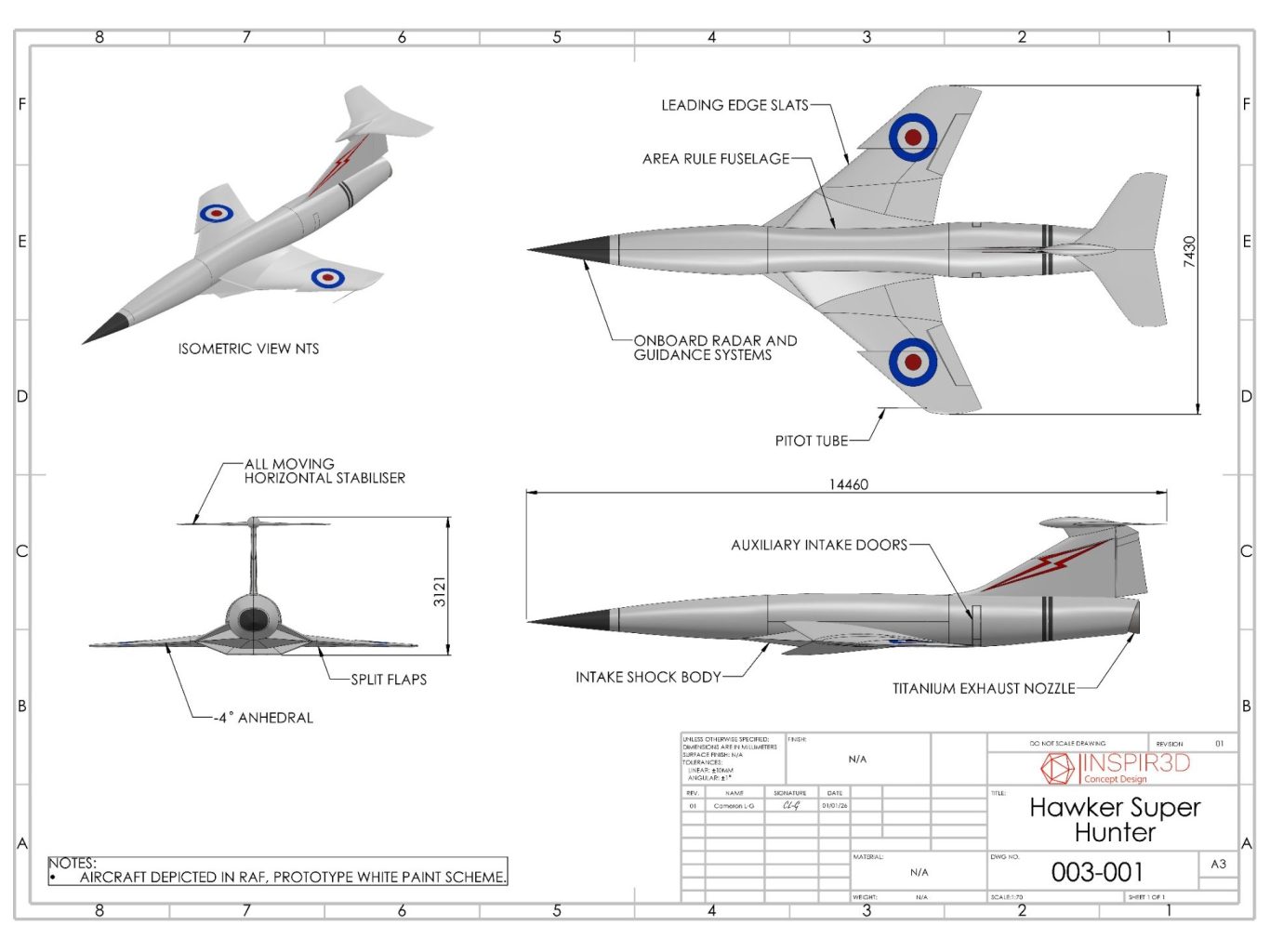

Engineering Drawing
Image Renders
Rendered Video
Watch this rendered video of the Hawker Super Hunter!

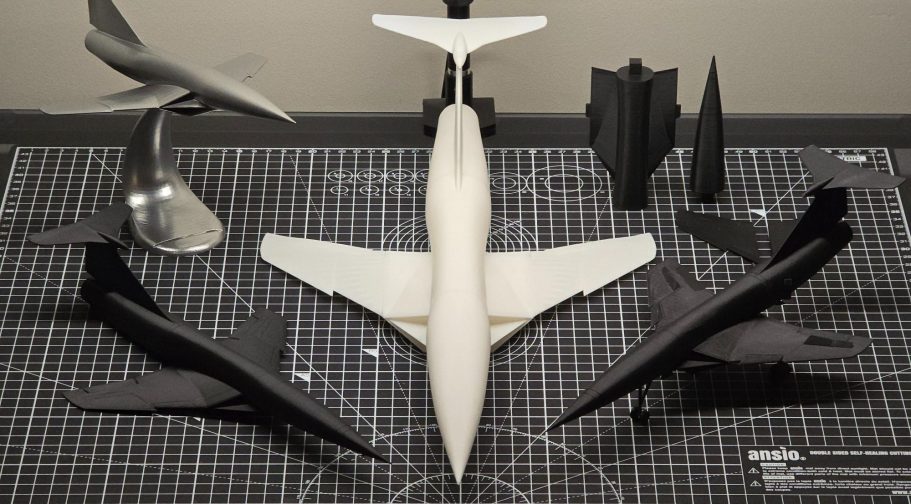

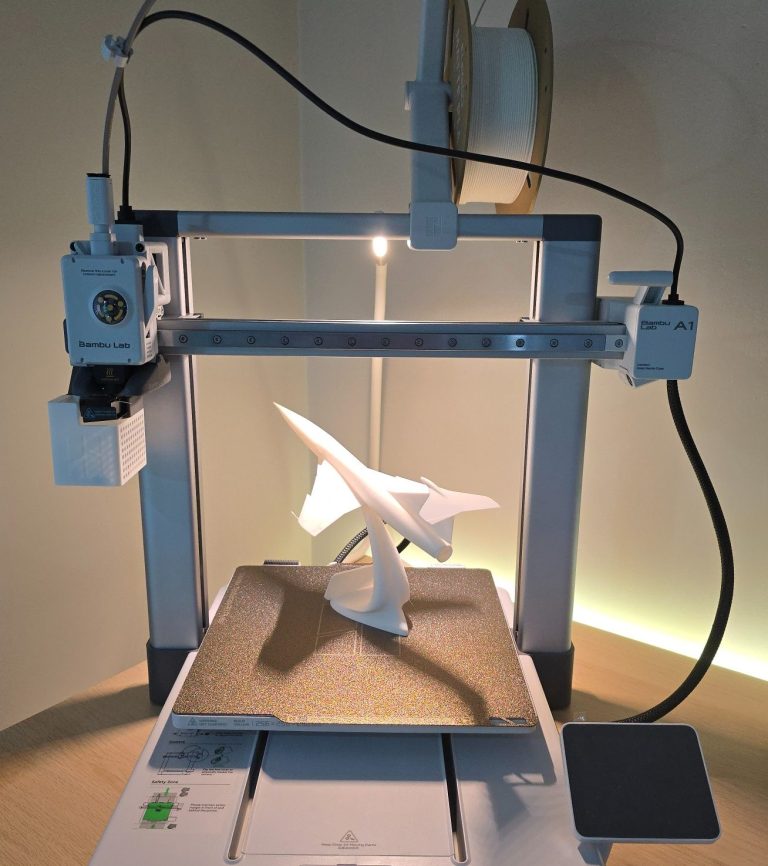

3D Prints

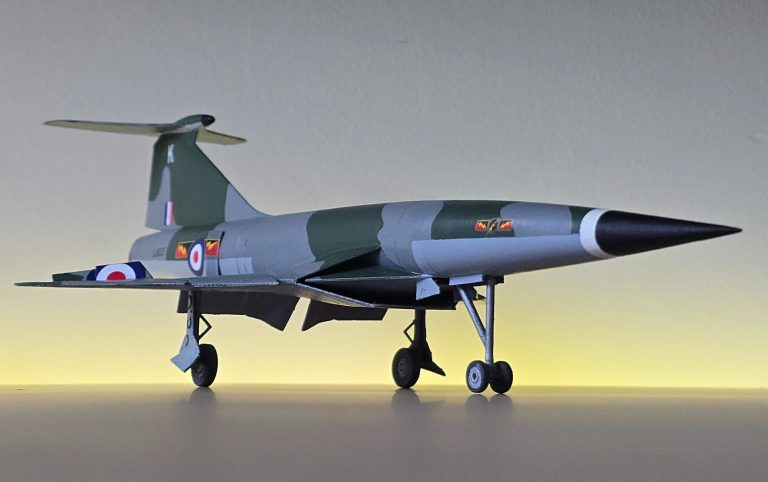

Custom 1:48 scale model

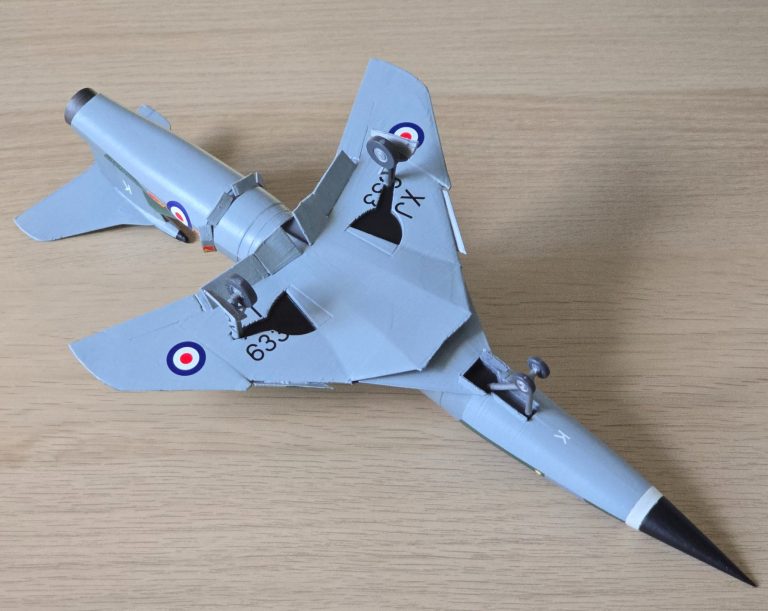

Customer requested a "What If" paint scheme, scale model.

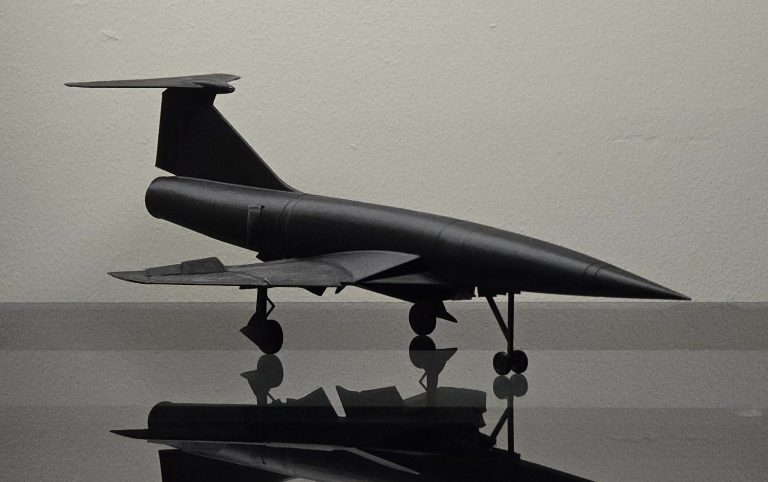

The model was printed in sections with separate flaps, slats, landing gear and spoilers. The items were glued together and prepped for paint.
The paint scheme was based on a FGR.10 Hawker Hunter from 4 Squadron, RAF Gutersloh, Germany, 1969. The decals were purchased separately and sealed under a gloss topcoat.
This model represents a one-of-a-kind, fully custom scale product.

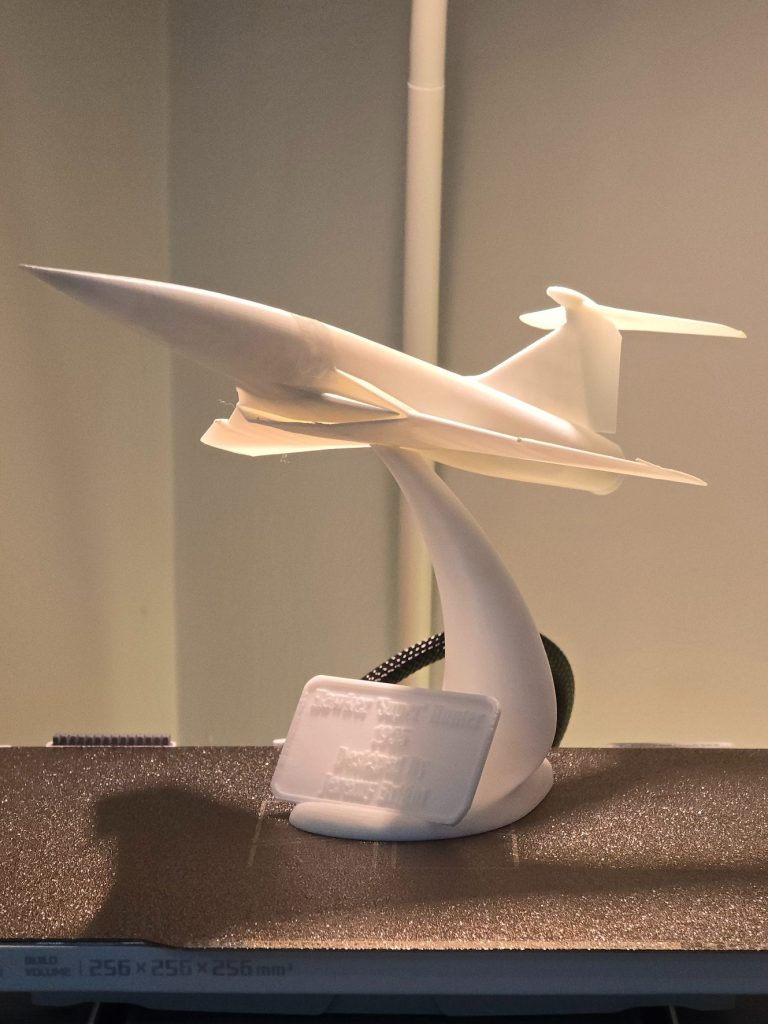

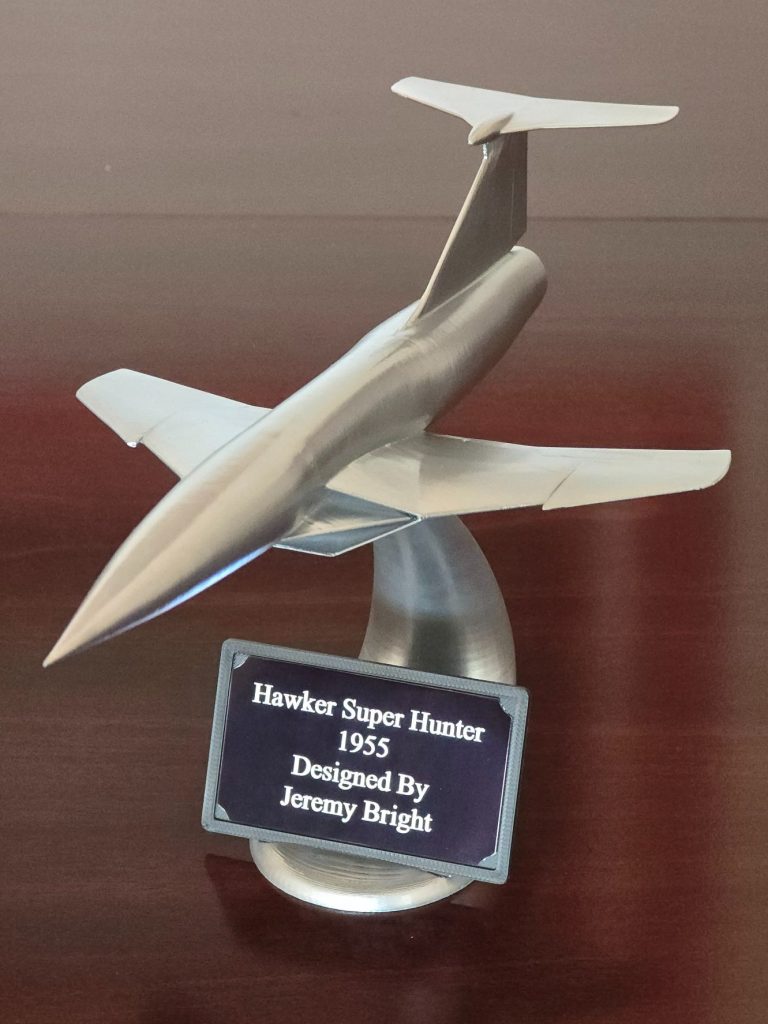

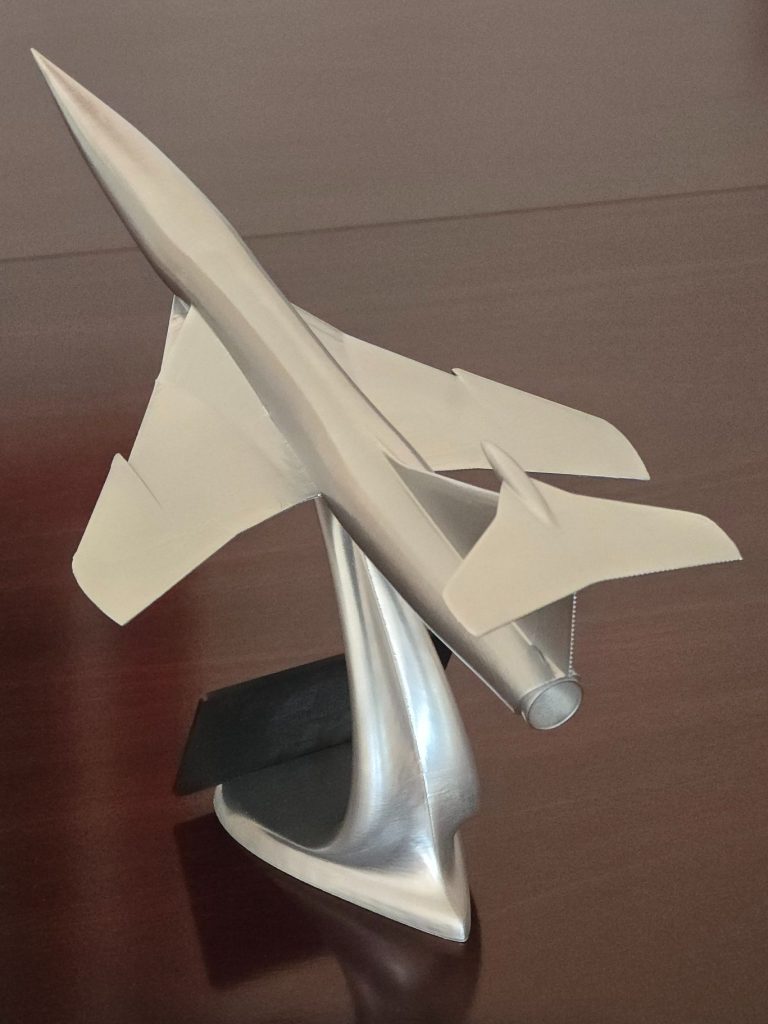

Display Stand Model
Additionally, a display stand mounted model with engraved plaque was built for the customer.
A metallic appearance was achieved with serval layers of silver paint and a gloss topcoat.
All information and imagery have been shared with the knowledge and consent of the original owner.
